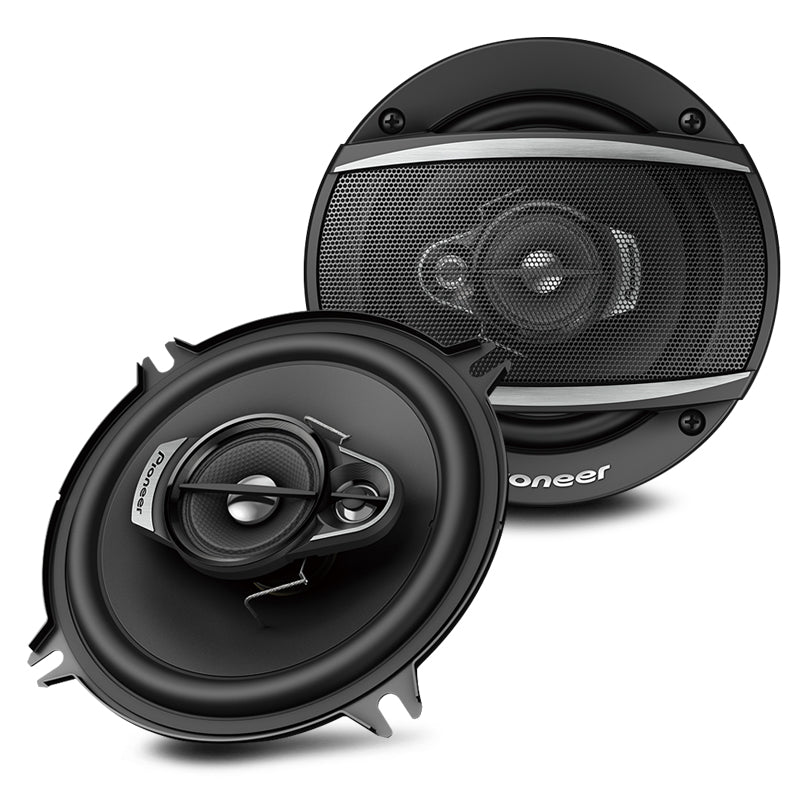

Designed for Optimus Sound, Offer Better Performance and Enhanced Sound Quality
Pioneer’s next generation of TS-A series speakers offer Carbon & Mica reinforced IMPP cone. This combined with a new magnetic circuit and long symmetrical voice coil make both rich deep bass and low distortion possible.
Newly designed speaker adapters offer a wide range of installation options and help to ensure a well-controlled sound. A design change has been applied which also removes the lead wire connection from the speaker face, giving a new clean look and reduces the risk of shorts and signal noise.
IMPP Cone Construction
Carbon & Mica reinforced IMPP cone for deeper and richer bass response.
Pioneer’s Sound Concept “Open & Smooth”
The Pioneer “Open & Smooth” sound concept delivers open staging and smooth transition of driver response to provide the ultimate in-car sound.
Specifications:
General
- Size: 5.25'
- Design: 5.25' 3-Way Coaxial System
- Tweeter Design: 11mm Balanced Dome
- Tweeter Composition: Polyethylene Terephthalate (PET)
- Woofer Composition: Carbon and mica reinforced IMPP
- Woofer Surround: Elastic polymer
- Woofer Magnet Composition: Ferrite
- Warranty: 1 Year
Installation Specification
- Max. Music Power (Nominal): 300W MAX (50W Nom)
- Frequency Response: 40Hz - 36kHz (-20dB)
- Sensitivity (1W/1 m): 87 dB
- Impedance: 4
- Mounting Depth: 52mm
- Cut-Out Dimensions: 121mm
