SmallRig x Potato Jet TRIBEX Hydraulic Carbon Fiber Tripod Kit 4259

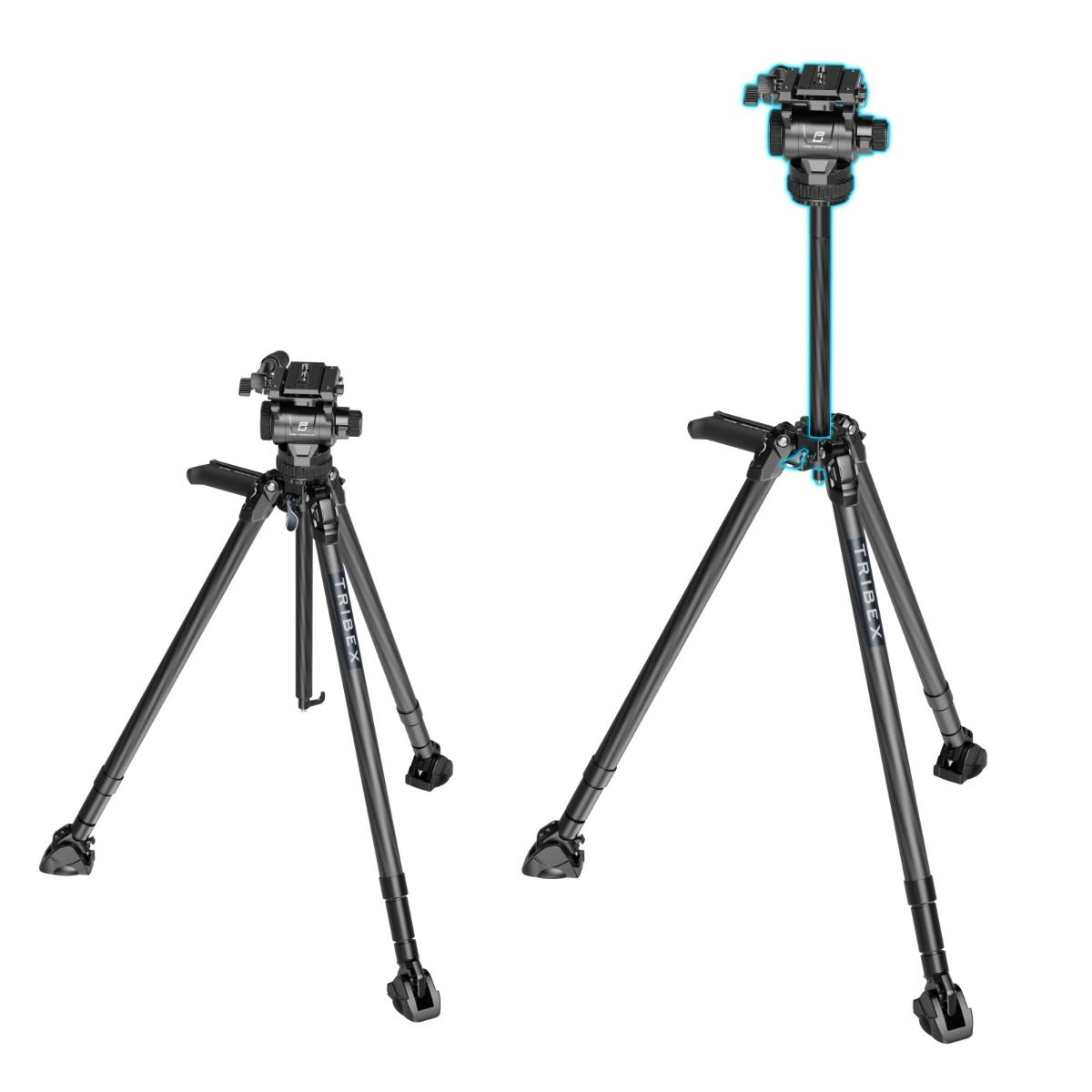

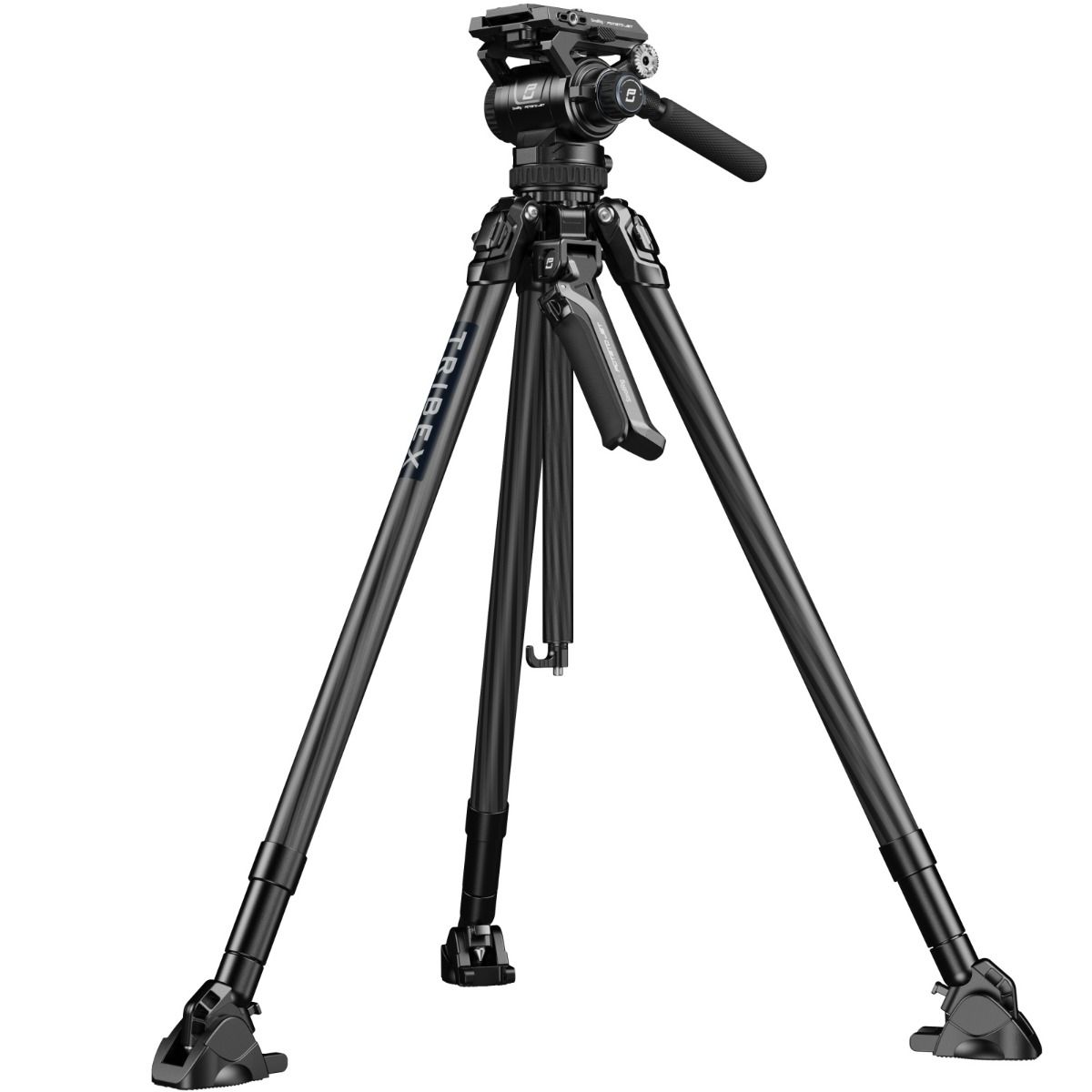

Designed for professional outdoor videography, offering swift and convenient operation. Featuring X-Clutch hydraulic technology, squeezing a single clutch allows all legs to rapidly unfold, adjust the angle, and automatically lock in just one second, providing photographers with a seamless experience. The clutch can also be adjusted to 45° and 90° to accommodate various shooting scenarios. Constructed with carbon fiber, both the legs and centercolumn ensure lightweight design while delivering exceptional stability and high load-bearing capacity. Operating altitude ranges from 27cm (10.6in) to 168cm (66.1in), and a compact storage length of 79cm (31.1in). The centercolumn features a quick-lock design for easy height adjustments, with a detachable Allen wrench built into the other side of the hook for convenient camera equipment assembly/disassembly, and the option for low-angle shooting at a minimum height of 27cm (10.6in). The compact design of the tripod allows it to fit in any standard luggage(28').

- The X-Clutch hydraulic technology for instant single-action extension of all legs.

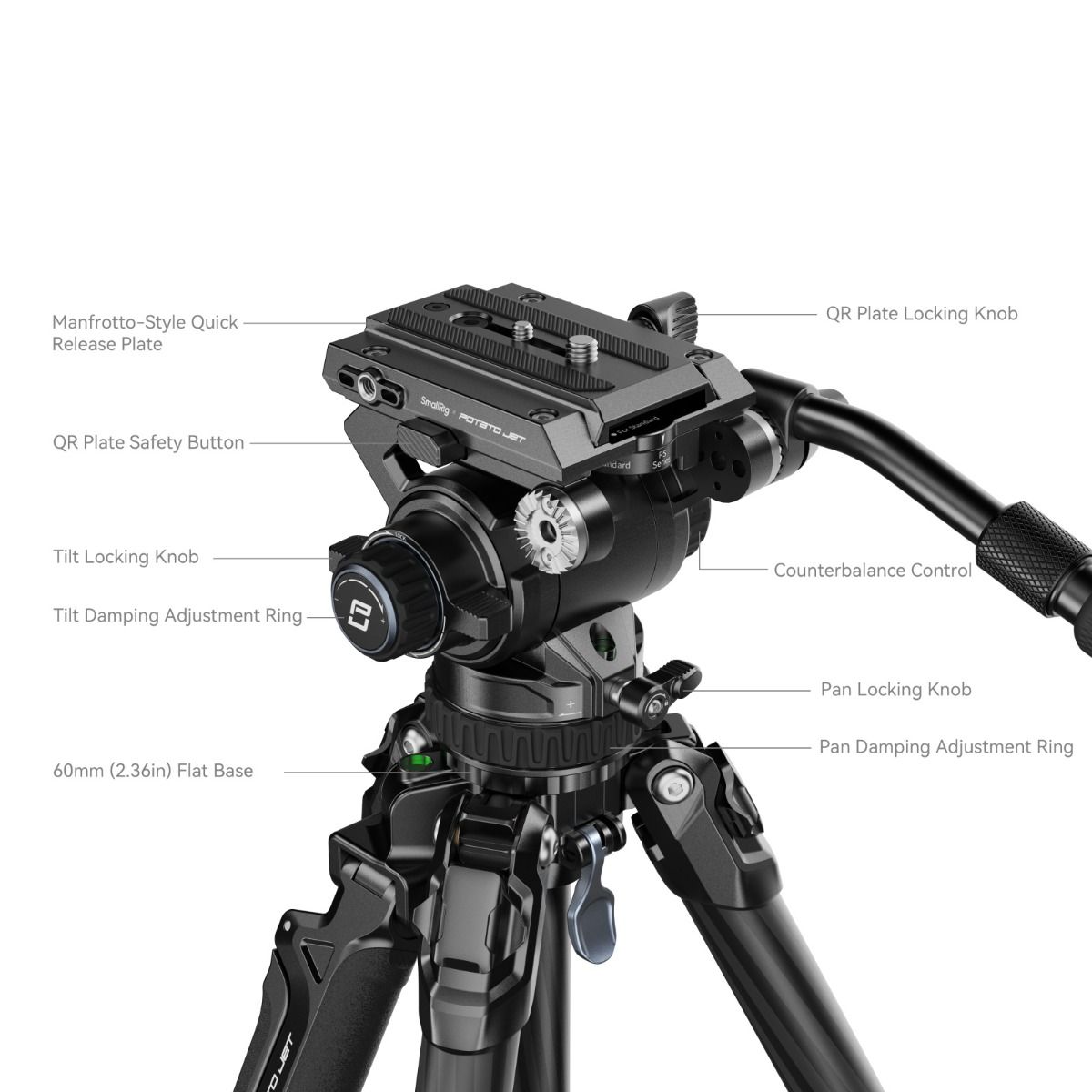

- Stepless tilt and pan damping alongside the 4-step dynamic counterbalance for precise control.
- The compact design fits perfectly in standard luggage.

IMPORTANT:

1. Before shooting, make sure the head and tripod locking status are in normal condition.
2. Avoid use in sandy or dusty environments to prevent the risk of damage.
3.After using the short center column, mounted on the center column, need to ensure the locking status.
4. Max payload of head: 6kg / 13.2lb (center column raised, leg angle at 23°, height at 168cm / 66.1in).
5. The weight capacity of the tripod head is not the absolute limit; it varies depending on the type of equipment, lenses used, accessories attached, and changes in the center of gravity.
6. Max payload of tripod: 25kg / 55lbs (center column not raised, tripod head detached, leg angle at 23°, height at 141cm / 55.5in).

Key Features:

Product Dimensions: 790.0 x 140.0 x 120.0 mm / 31.1 x 5.5 x 4.7in
Product Weight: 3.8 ± 0.1kg / 8.3 ± 0.2lbs

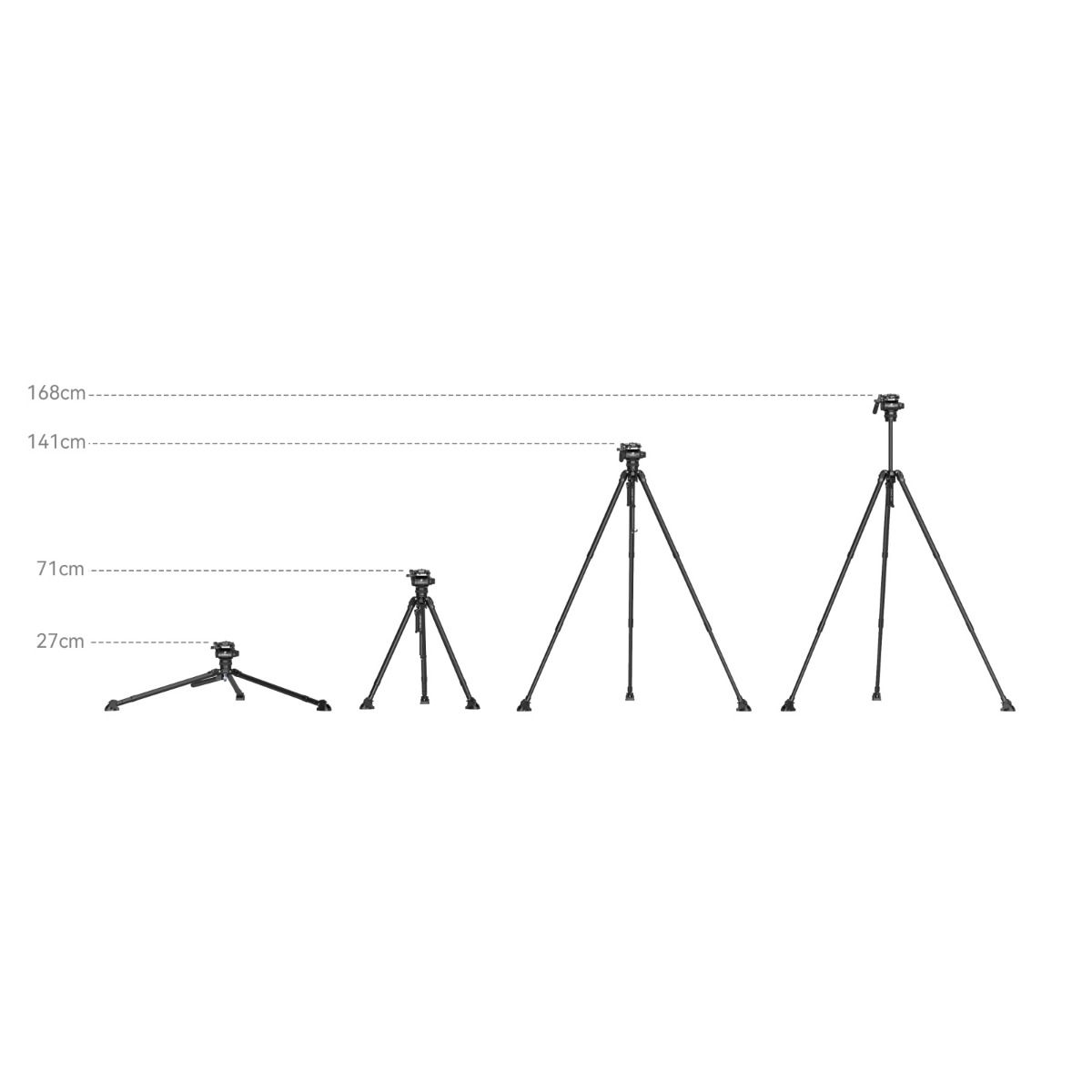

Operating Altitude: 27.0 - 168.0cm / 10.6 - 66.1in

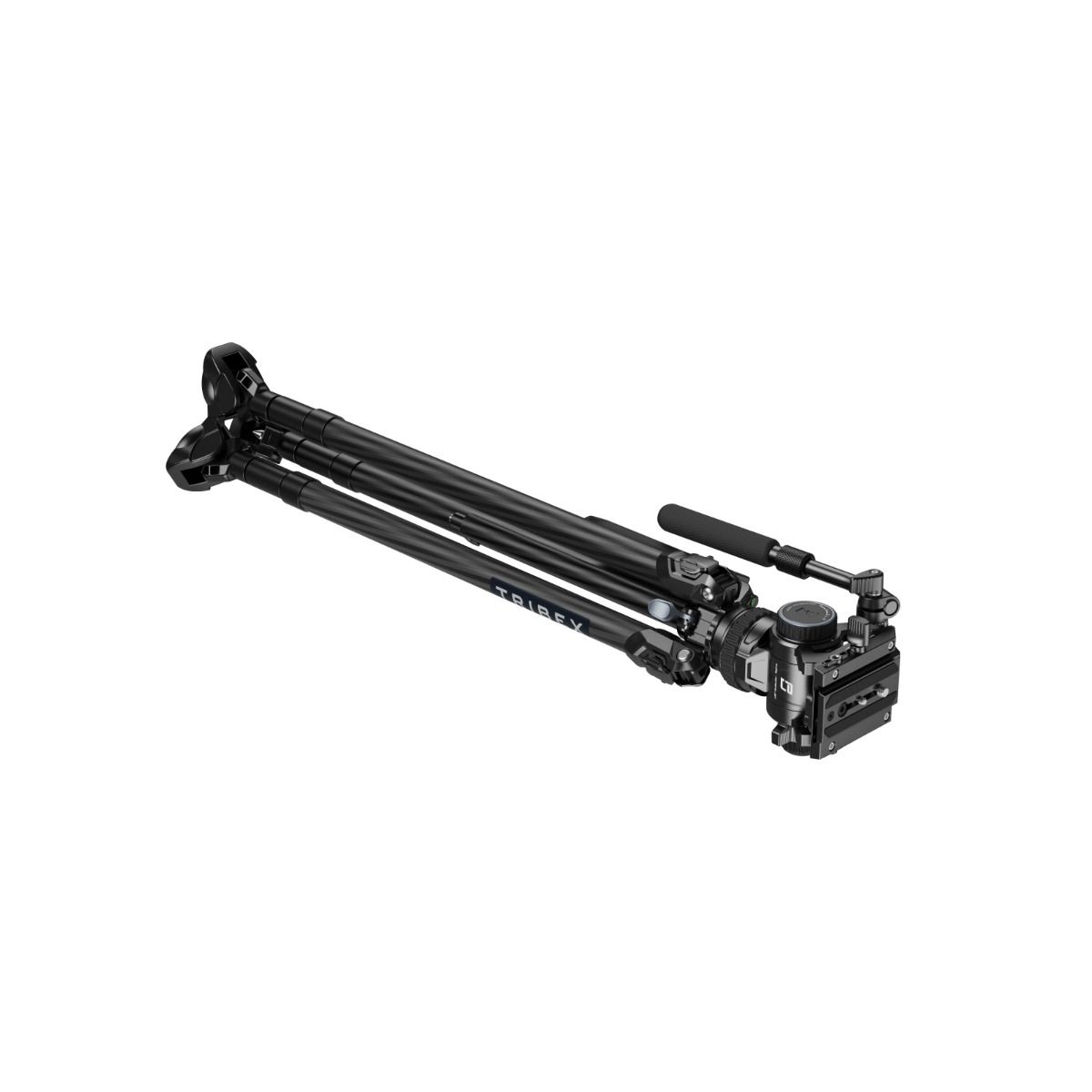

Storage Length: 79.0cm / 31.1in
Legs Diameter: 29.5mm - 25.5mm - 22mm / 1.16in - 1.0in - 0.86in
Fluid Head Base Diameter: 65.0mm / 2.55in
Tilt Range: +90°/-65°
Counterbalance Payload: 0 - 6.0kg / 0 - 13.2lb
Counterbalance Step: 4-Step (0,1, 2, 3)
Tilt Control: Stepless
Pan Control: Stepless
Head Payload: 6kg / 13.2lb
Handle Length: 23.0 - 36.0cm / 9.0 - 14.2in
Material(s): Carbon Fiber, Aluminum Alloy, POM, Stainless Steel, Silicone

Compatibility:

501PL Quick Release PlateDJI RS Series Quick Release Plate

What’s in the box:

1 x Tripod Kit
1 x Allen Wrench
1 x Storage Bag
1 x Smartphone Holder
1 x Guarantee Card
